DATOUBOSS 12000W Hybrid Solar Inverter, 48V DC to110V/240V AC Split-Phase Inverter, Built-in 2 MPPT Solar Controllers, Pure sine Wave, Max Charging Current 220A,500V PV Input, Max. 6 Parallel
Product details
| Management number | 220448321 | Release Date | 2026/05/03 | List Price | US$380.00 | Model Number | 220448321 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

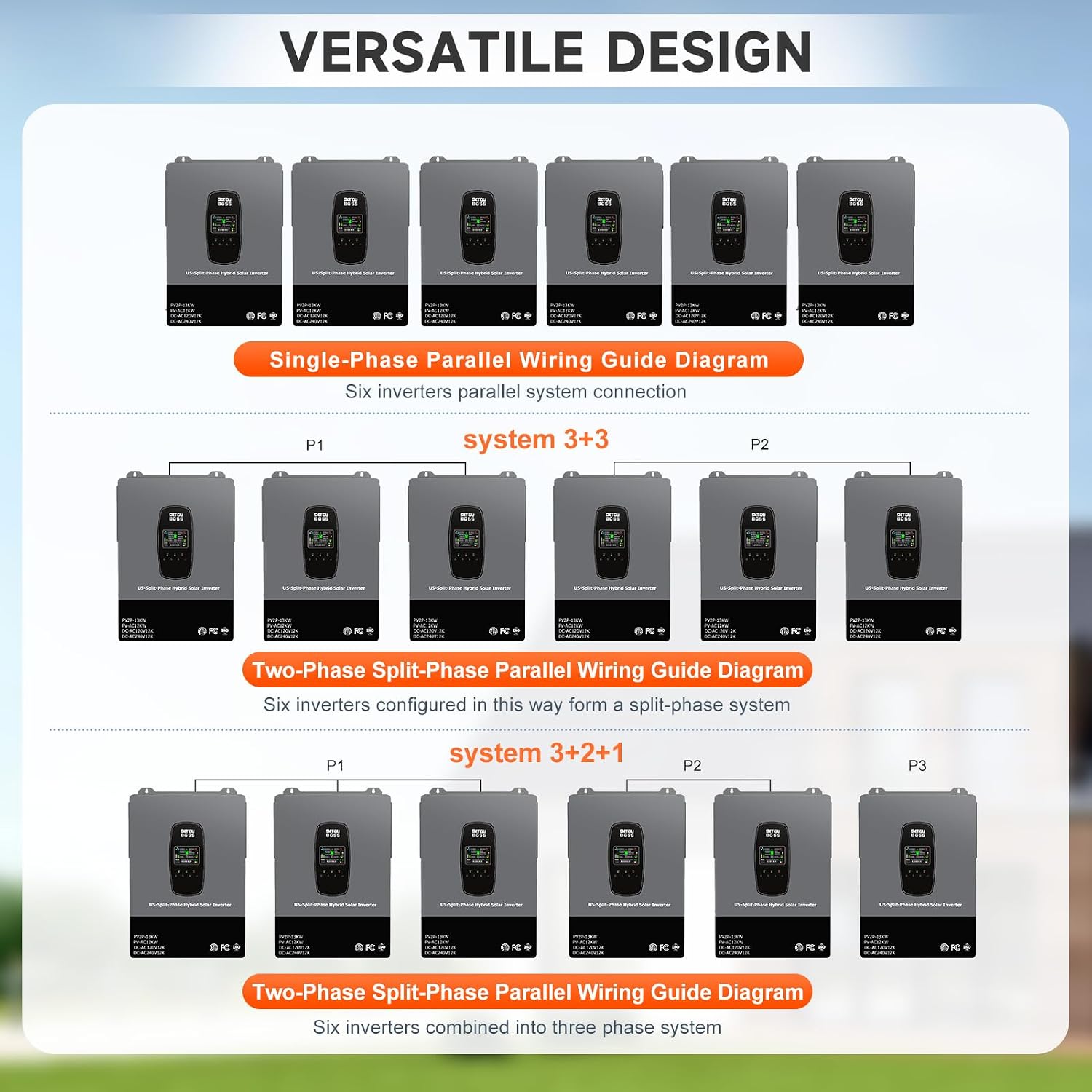

- ⚡【SUPPORTS PARALLEL OPERATION – EXPANDABLE TO UP TO 6 UNITS】The DATOUBOSS 48v 12KW hybrid solar inverter split-phase solar inverter supports both split-phase and single-phase pure sine wave output. A single 10kW inverter can output both 120V and 240V simultaneously via independent connection. Upgraded models support parallel operation, with a maximum parallel capacity of 72kW, allowing up to 6 inverters to be connected in parallel.
- ⚙️【KEY TECHNICAL SPECIFICATIONS-MAX 13kW PV INPUT】Rated Output Power: 12000W continuous output. Rated Output Voltage: 120/240Vac (split-phase/single-phase). Maximum PV Input Power: 13kW (6500W per MPPT input). Maximum PV Input: 500V DC, 22A*2. Maximum PV Charging Current: 220A
- 🌞【BUILT-IN DUAL MPPT CONTROLLER】48V Hybrid solar inverter equipped with dual 100A MPPT controllers, achieving a tracking efficiency of 99.9% and a single-loop current of up to 22A, making it ideal for high-power modules. Supports connecting two solar inputs and simultaneously tracking the maximum power point. Supports both single-phase and phase-to-phase pure sine wave output configurations.
- 🔌【FOUR AC OUTPUT MODES & FOUR CHARGING MODES】This hybrid inverter 48v pure sine wave solar inverter features four selectable battery charging modes: pure solar charging, AC-priority charging, solar-priority charging, and AC/solar hybrid charging, allowing for flexible switching based on different power usage environments.It also offers four AC output operating modes: PV-priority, AC-priority, inverter-priority, and PV/AC hybrid mode, meeting diverse energy management needs and application scenarios to achieve more efficient and intelligent power distribution.
- 🔋【COMPATIBLE BATTERY TYPES】48V Hybrid inverter with a rated battery input voltage of 48V, this inverter can be used with 48V lead-acid batteries (including sealed, AGM, gel, and flooded types) and lithium batteries. It also supports a battery-free operating mode.
- 🛡️【COMPREHENSIVE PROTECTION AND WIDE APPLICATION】The DATOUBOSS 12000W solar inverter offers comprehensive safety protection, including short-circuit protection, overcurrent protection, overvoltage/undervoltage protection, overload protection, and reverse feed protection. It is ideal for off-grid backup power and self-sufficient applications, suitable for various scenarios including residences, cabins, campervans, RVs, trailers, and boats.
- 📶 【SMART WIFI MONITORING – UPGRADE TO FULL CONTROL】 Supports an optional WiFi monitoring module (sold separately) for real-time system tracking via mobile app or web. Stay informed with live data on voltage, battery status, and power usage—anytime, anywhere. Upgrade your inverter with smarter control and greater convenience.
- 💯 【DEDICATED CUSTOMER SUPPORT】Shop with confidence！Designed with your peace of mind in mind. Our experienced support team is available to help with installation guidance, technical questions, and product-related concerns. If any issues arise after delivery, simply reach out to us—we’ll respond as quickly as possible and do our best to assist you with an appropriate solution.
| UPC | 742003481195 |
|---|---|
| Brand | DATOUBOSS |
| Color | 48V12KW |
| Voltage | 48 Volts |
| Wattage | 12 KW |
| Frequency | 60 Hz |
| Model Name | 48V 12KM Hybrid Solar Inverter |
| Unit Count | 1.0 Count |
| Display Type | LCD |
| Manufacturer | DATOUBOSS |
| Model Number | DT-4812 |
| Output Power | 12000 Watts |
| Power Source | Solar and Battery Powered |
| BuiltIn Media | 48v hybrid inverte, 48v hybrid solar inverter, 48v inverter pure sine wave, Instruction Manual |
| Input Voltage | 110 Volts (AC) |
| Output Voltage | 120 Volts (AC) |
| Mfr Part Number | 48v hybrid solar inverter |
| Antenna Location | Home, Office, Vehicle |
| Warranty Description | 2 Year Manufacturer |
| Peak Output Power Watts | 8500 |
| Energy Specifications Met | UL |
| Electrical Output Waveform | Pure Sine Wave |
