Rsrteng CCTV Tester 4K 12MP IP Camera Tester POE++ Max 90W POE Camera Tester OPM/VFL/DMM,8MP TVI/CVI/AHD/CVBS Coaxial Camera Tester,1CH SFP Module,WiFi,Network Tools,Cable Tester,HD/VGA,POE Detection

Model: E89 Display:8” inch IPS touch screen, 1920x1200 resolution. POE: IEEE 802.3af & IEEE 802.3at (PoE+),IEEE 802.3bt POE ++MAX 90W power output IP camera test:Max 4K 12MP IP camera test. M--Digital Multimeter: DC and AC voltage, Resistance, Diode, Capacitance measurement, Continuity testType: Class 2; Power<1mW,Wavelength:650nm O--Optical power meter, Wavelength:1625,1550,1490,1310,1300,850nm, measurement range:-70~+10 dBm, for optical power testing and Fiber link loss relative measurement. Coaxial HD camera test: 8MP TVI, CVI, AHD, camera test, 8MP EX&HD-SDI, 3G-SDI camera test, UTC control & call OSD menu. CVBS:1 BNC input, 1 BNC looped output, NTSC/PAL(Auto adapt). UTP cable test. RJ45 TDR cable test, cable length.1 CH gigabit SFP:Support insert Gigabit SFP optical fiber module, for optical fiber network testing. Power: Input DC15V/2.4A; Output DC12V/2A & DC5V 2A.Battery: Built-in 11.1V Lithium polymer battery, 5200mAh, 57.72Wh. Wifi:Built in WIFI, speeds 150 Mbps, support 2.4GHz. Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test. camera:8MP camera. HD: 1 input(4K). language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese.

• 【POE++ MAX 90W Power Output & Gigabit SFP Module】Rsrteng E89 Model CCTV Tester support standard IEEE 802.3af & IEEE 802.3at and IEEE 802.3bt POE++,max 90W power output. Supports standard POE cameras and high-power PTZ speed dome camera with POE function. Provide power supply for high-power PTZ speed dome camera. 1CH SFP optical fiber module interface,support insert Gigabit SFP optical fiber module for optical fiber network testing.

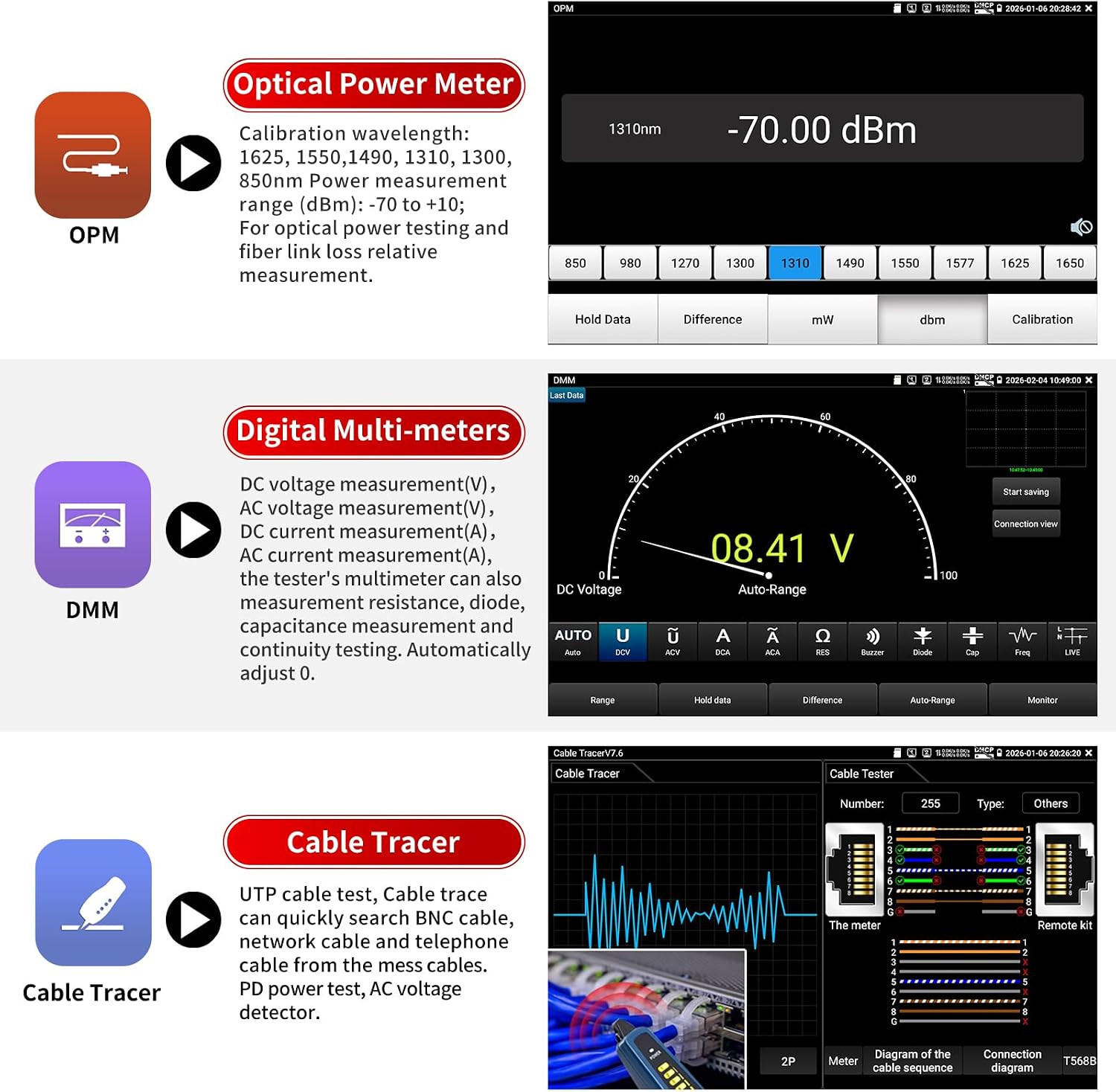

• 【DMM&OPM】Digital Multimeter--Measurement tool for AC and DC voltage, AC and DC current, resistance, capacitance, data hold, relative measurement, continuity testing. Optical power meter--It is used for signal power test and insertion loss test of various equipment and photoelectric components. And also support V-F-L function.
• 【4K IP Camera Tester】Network camera tester support max 4K 12MP 4000*3000P IP Camera tester. Rapid Video,auto view the video,IP discovery, For Hik and DH cameras, support batch activate for cameras and modify IP address, username and password. Self-defined modify channel name.IPC Tester also compatible with most existing cameras. Create testing report.

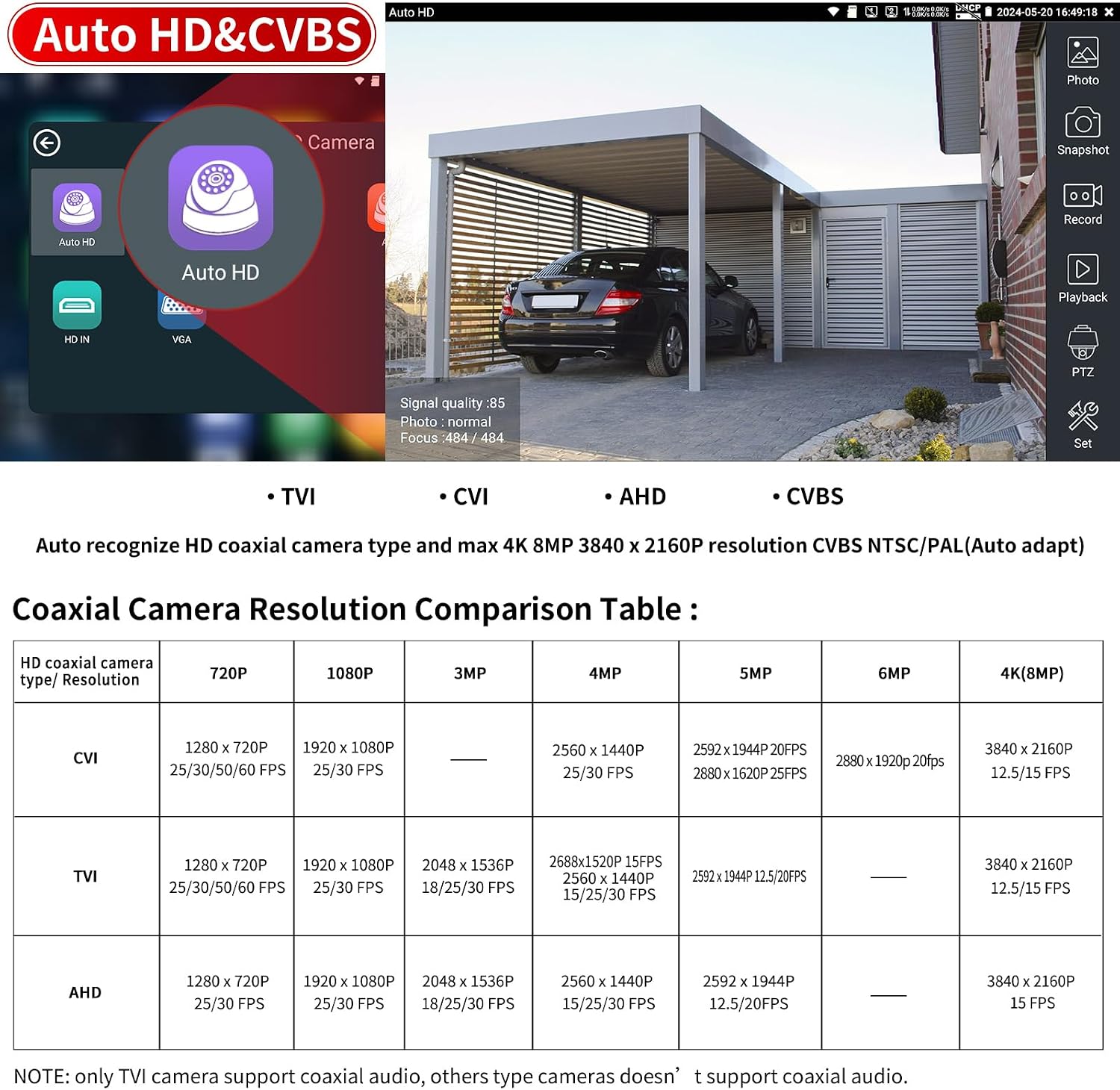

• 【Coaxial Camera Test & Cable Tester & Appliction port】Built-in "Auto HD" app can recognize max 4K 8MP(3840x2160P) AHD/TVI/CVI/SDI/CVBS coaxial cameras.CCTV tester monitor support UTC/PTZ control and call OSD menu. UTP cable test.RJ45 TDR cable.Cable Length measure. Dual Gigabit Ethernet Ports. Audio I/O,HD/VGA input,WiFi,DC output:24V/2A,12V/3A,5V/2A.
• 【Network Tool & WIFI & POE Detection & Power Management】Network test tool trace route, Link monitor, DHCP server, port flashing, Ping test. Built in WIFI, speeds 150Mbps, 2.4GHz. WIFl analyzer can view wifi information, test wifi strength,analyze channel occupancy and channel rating, etc. Support PSE/POE detect. Power management can view real-time data such as voltage and power of POE, DC12V, DC24V output and DC12V input. PSE voltage and power supply protocol detection for POE Switch.
• 【Power & App Update】:8 inch IPS touch screen IPC Tester,1920x1200 resolution,Android 11.0 system. Power by 11.1V lithium polymer battery,5200mAh,57.72Wh. Application Update support upgrade the app online or download the file to the SD card for local updates. We have a professional after-sales technical team,so you don’t have to worry about technical problems.
